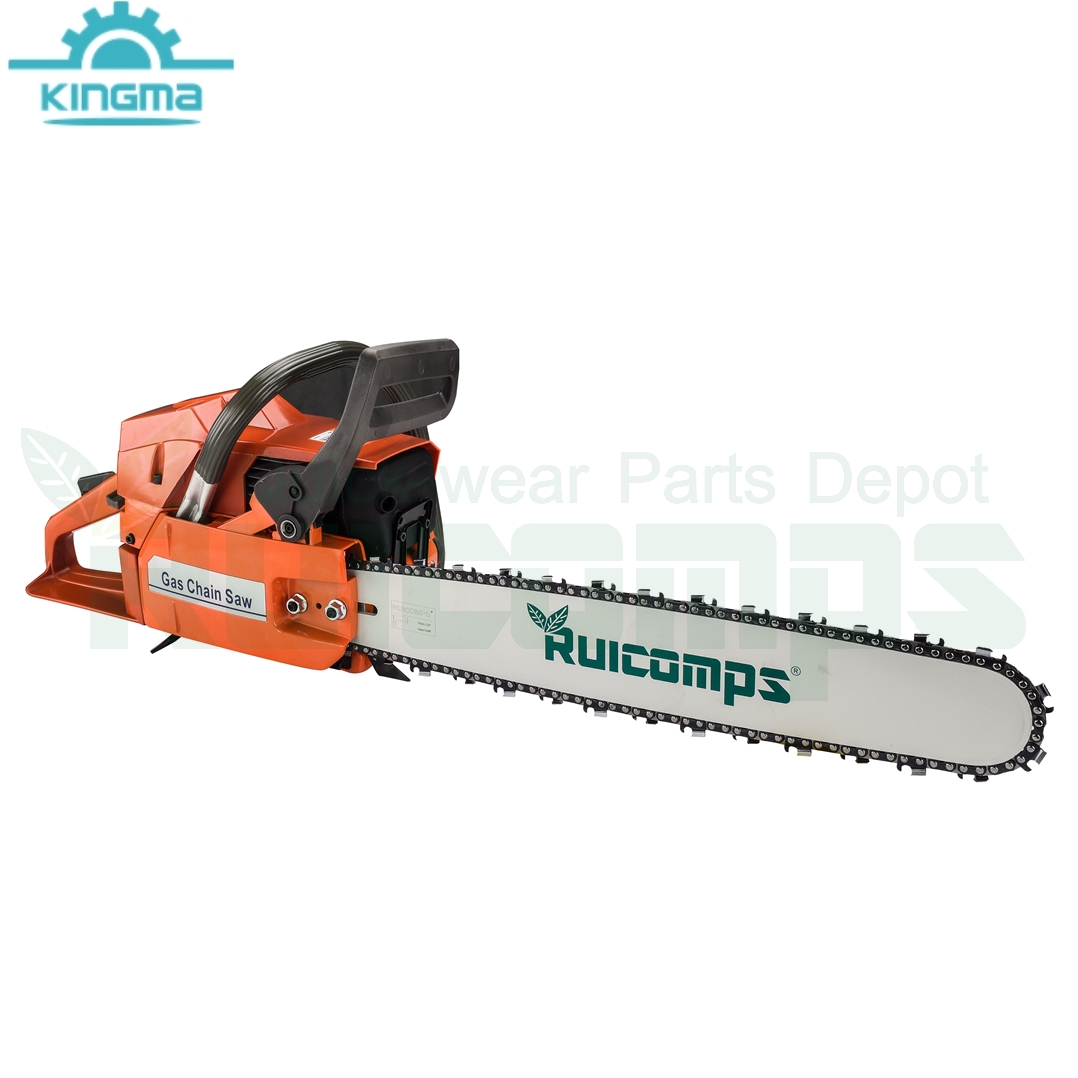

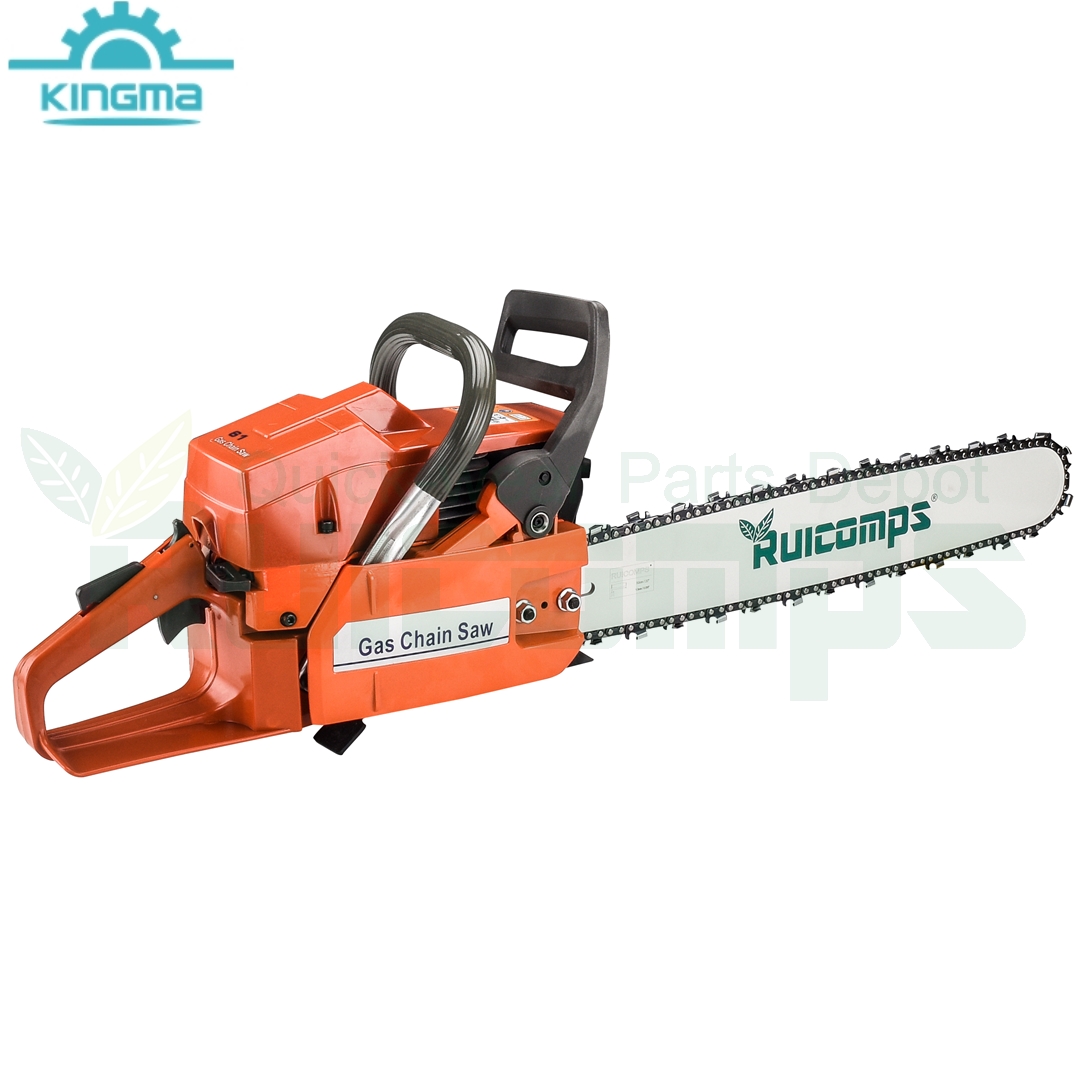

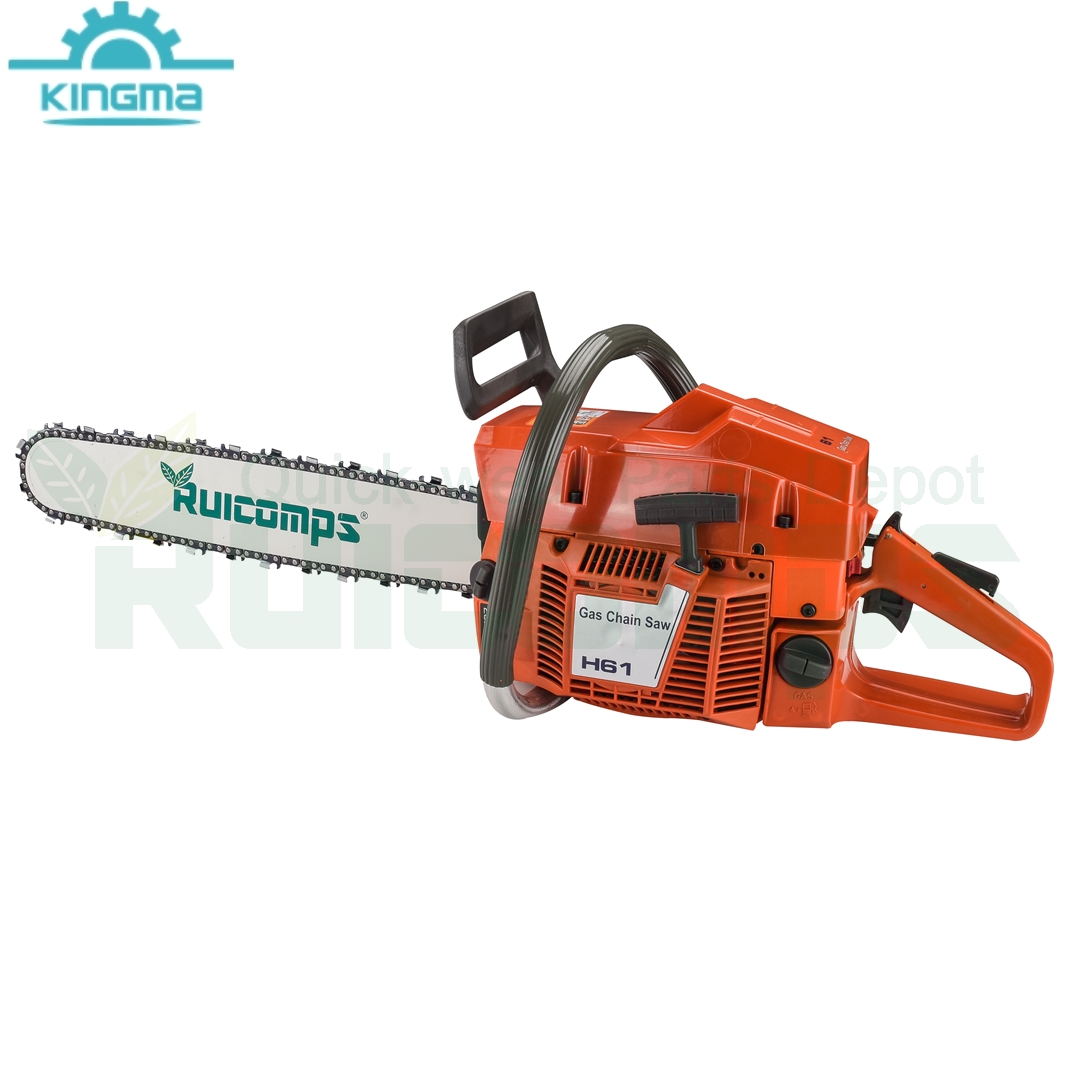

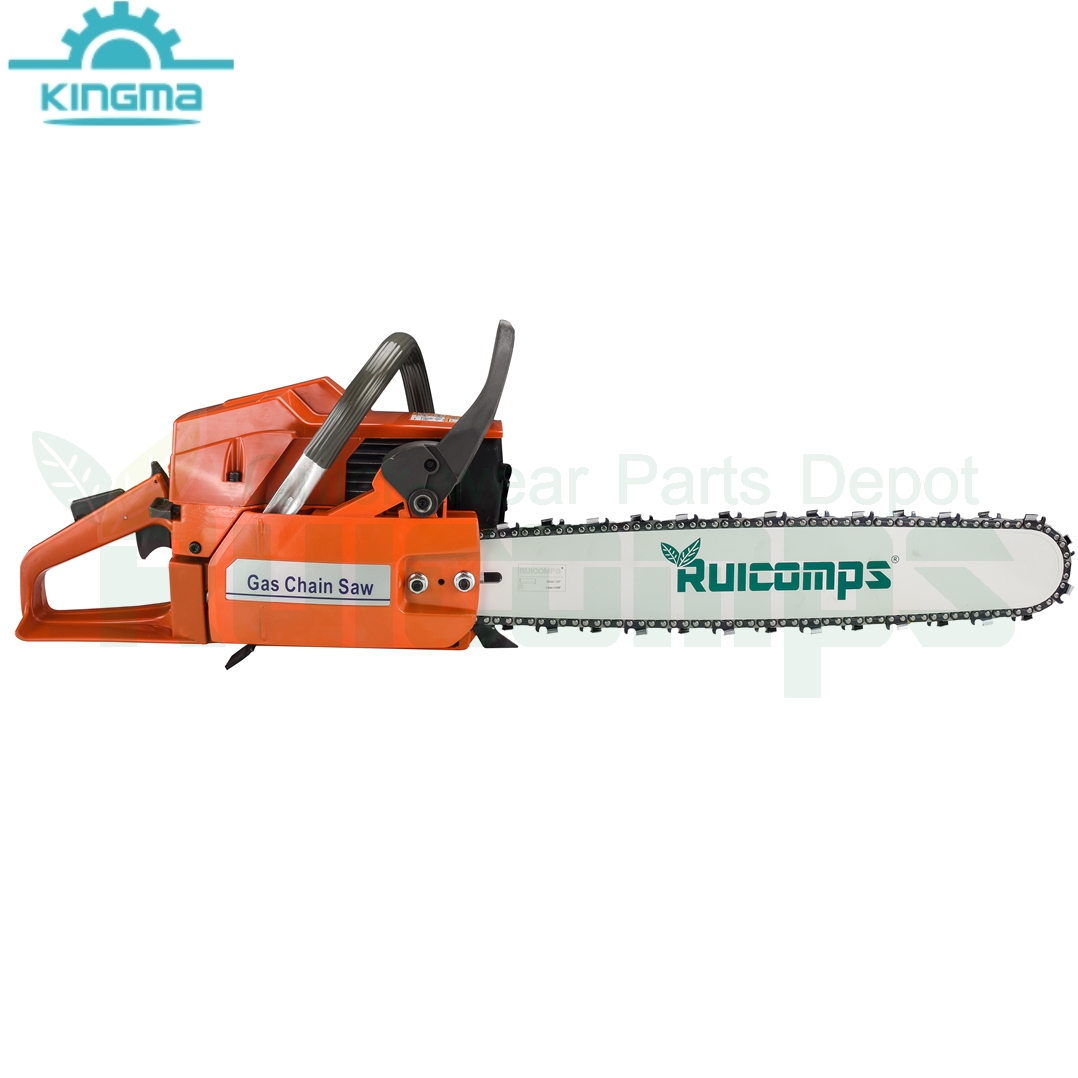

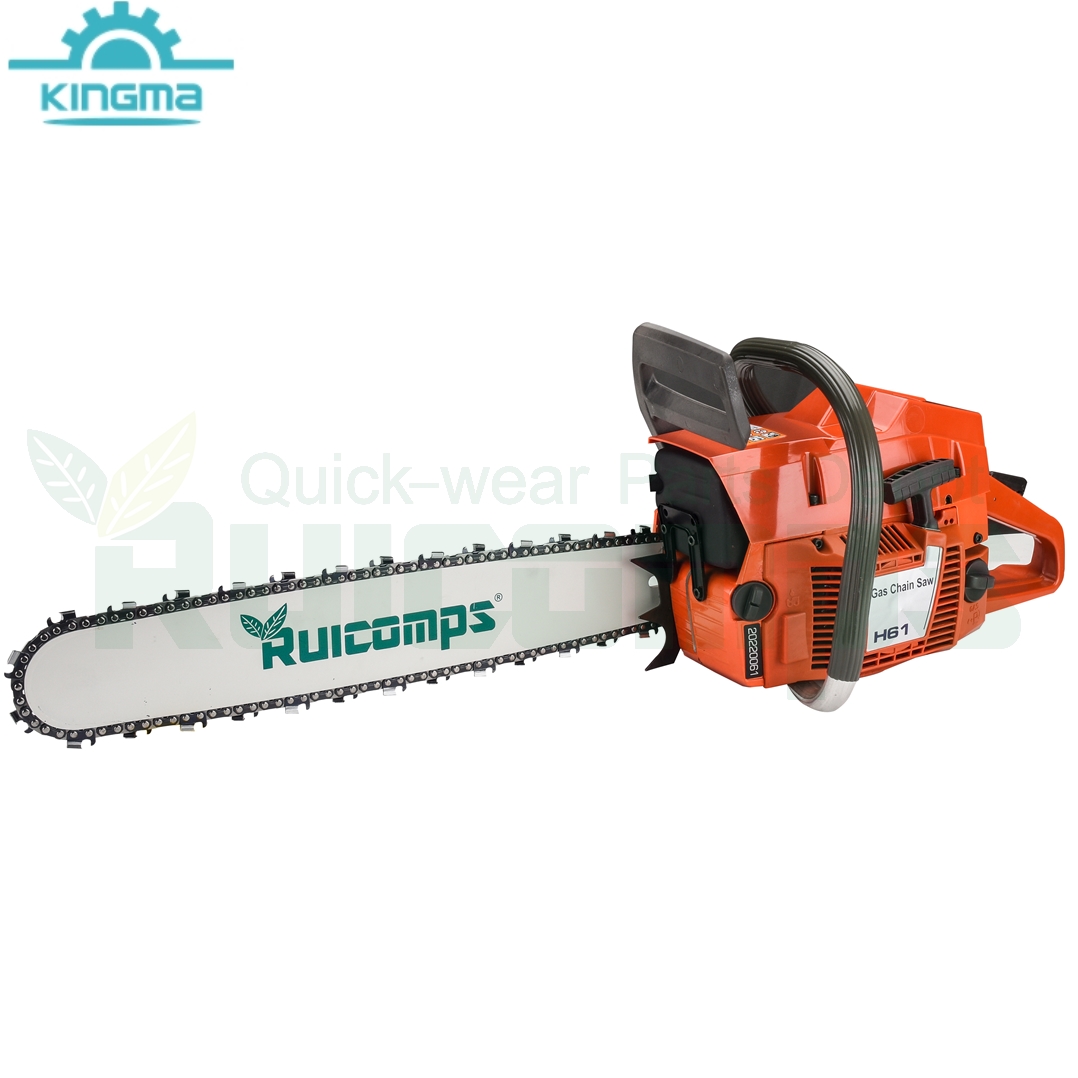

Ruicomps H61 Chainsaw Gasoline Chain Saw

CAPACITY

Chain speed at 133% of maximum engine power speed

24.5 m/s

Clutch engagement speed (±120)

3700 rpm

Idling speed

2600 rpm

Ignition module air gap

0.3 mm

Maximum power speed

8300 rpm

Power output

2.9 kw

Torque, max.

3.6 Nm

Torque, max. at rpm

6000 rpm

DIMENSIONS

Article gross weight

8380 g

Article net weight

7480 g

Bar length(inch)

15”

Bar length

380 mm

Weight (excl. cutting equipment)

6.2 kg

ENGINE

Carburetor

Walbro

Cylinder bore

48 mm

Cylinder displacement

61.5 cm³;

Cylinder stroke

34 mm

Electrode gap

0.5 mm

Ignition module air gap

0.3 mm

Max engine/motor RPM

12000 rpm

Spark plug

Champion RCJ7Y, NGK BPMR7A, Ruicomps L7T

EQUIPMENT

Bar mount type

Large

Chain type

H42

Chainsaw sub-group

Part time use chainsaws

Gauge

1.5mm or 1.6mm

Handle type

Standard

Pitch

3/8”

Source system

PAID

Sprocket type

Spur 7

LUBRICANT

Fuel consumption

500 g/kWh

Fuel consumption

1.5 kg/h

Fuel tank volume

0.75 L

Fuel type, min (Europe)

RON min 91 or alkylate

Lubricant type

Ruicomps or equiv. at 50:1

Oil pump capacity Max

12 ml/min

Oil pump capacity Min

3 ml/min

Oil pump type

Automatic

Oil tank volume

0.4 L

Power/fuel type

Gasoline

PACKING

Packaging height

350 mm

Packaging length

480 mm

Packaging width

260 mm

Packaging volume

43.68 dm³;

Quantity in Master pack

1

SOUND AND NOISE

Sound level

101 dB(A)

Sound power level, guaranteed (LWA)

117 dB(A)

Sound power level, measured

115 dB(A)

Sound pressure level at operators ear

102 Db(A)

VIBRATION

Daily Vibration (Aeqv)

6.9 m/s²;

Daily Vibration Exposure(A8)

4.7 m/s²;

Daily Vibration Time (Time factor)

3.7 h

Equivalent vibration level (ahv, eq) front handle

6.2 m/s²;

Equivalent vibration level (ahv, eq) rear handle

6.9 m/s²;
