Oil Pump Diagram for Stihl 023 025 Ms230 Ms250 Ms230(C-BE) Ms250C Chainsaw Gasoline Chainsaw Spare Parts

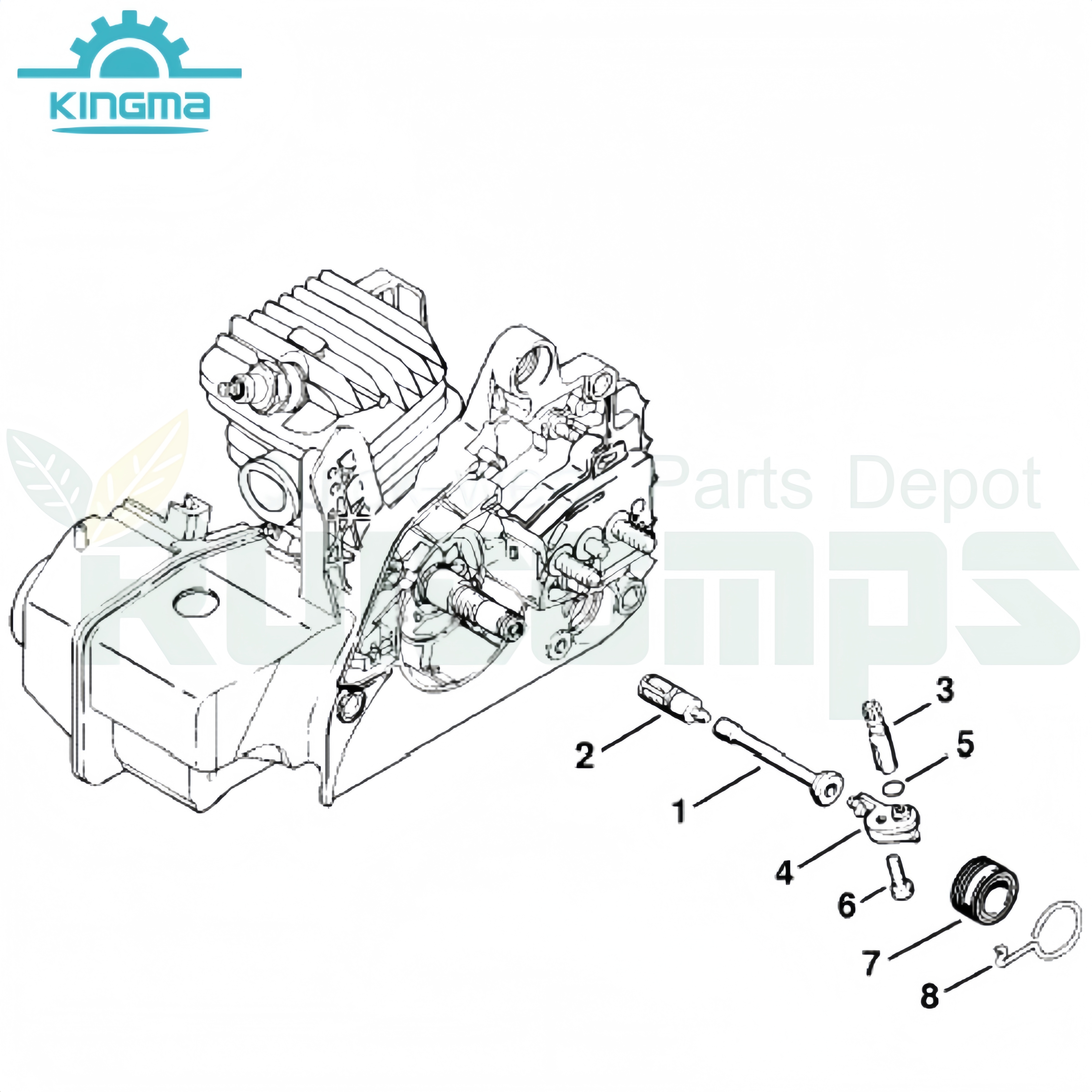

Stihl MS 230 250 Chainsaw (MS230C-BE) (MS250C) Parts Diagram, oil pump system. Look at the diagram and find parts that fit a Stihl MS 230 250 Chainsaw, or refer to the parts list below.

  • st023 025 ms230 250

  • Ruicomps

  • RT.OP.MS23250

  • RT.MS23250

Availability:
Quantity:
Inquire Add to Basket

Oil Pump Diagram for Stihl 023 025 Ms230 Ms250 Ms230(C-BE) Ms250C Chainsaw Gasoline Chainsaw Spare Parts
No.PartDescriptionMOQPrice Remark
1
SL-11236479400oil hose(tube)
negotiationemail us
2SL-11236403800oil filter(pickup body)negotiationemail us
3SL-11236403200oil pump 0.55mm
negotiationemail us
4SL-11236402901connectornegotiationemail us
5SL-96499450355O-ring 6.1x1.6
negotiationemail us
6SL-90744784130pan head self-tapping screw IS-P5x16
negotiationemail us
7SL-11236407102worm gearnegotiationemail us
8SL-11236472400worm gear springnegotiationemail us
