Handle Housing Diagram for Stihl 023 025 Ms230 Ms250 Ms230(C-BE) Ms250C Chainsaw Gasoline Chainsaw Spare Parts

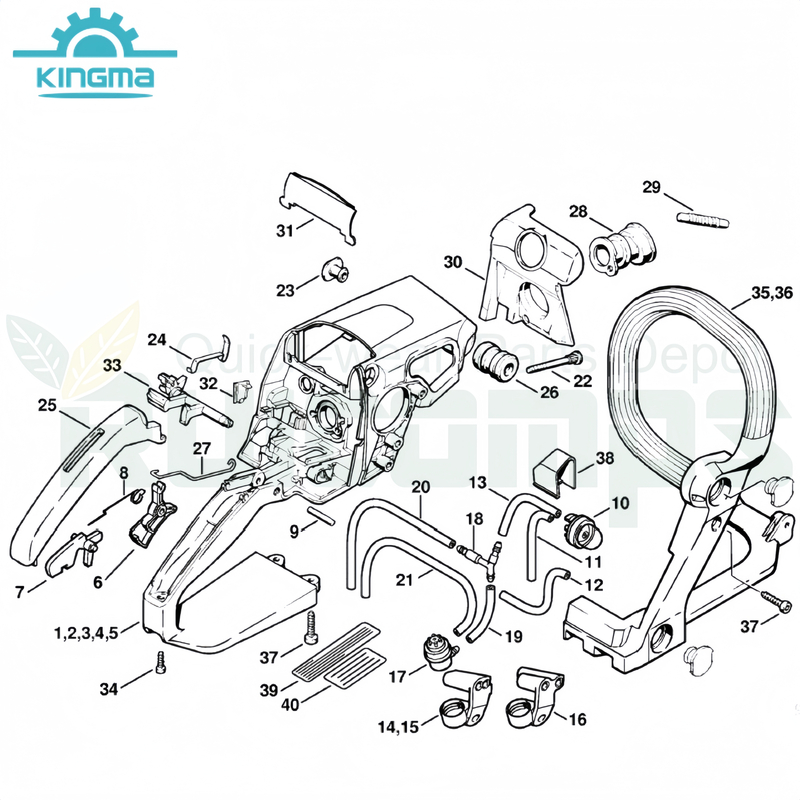

Stihl MS 230 Chainsaw (MS230C-BE) Parts Diagram, Handle Housing. Look at the diagram and find parts that fit a Stihl MS 230 Chainsaw, or refer to the parts list below.

  • st023 025 ms230 250

  • Ruicomps

  • RT.HH.MS23250

  • RT.MS23250

  • Injection molding

Availability:
Quantity:
Inquire Add to Basket

Handle Housing Diagram for Stihl 023 Ms230 Ms230(C-BE) Chainsaw Gasoline Chainsaw Spare Parts
No.Parts
DescriptionMOQPrice Remark
1.2.3.4.5

SL-11237901004                  SL-11237901022

SL-11237901017

SL-11237901015

handle housingnegotiation
email us
6SL-11281821005throttle triggernegotiationemail us
7SL-11171820805throttle levernegotiationemail us
8SL-11171824500hook on springnegotiationemail us
9SL-93714702640
cylindrical pin(Din7)-5m6x24negotiationemail us
10SL-41303506200fuel pumpnegotiationemail us
14.15.16SL-11231237503/4
stihl grommetnegotiationemail us
17SL-00003505802tank vent
negotiationemail us
18SL-11233532700connecting piecenegotiationemail us
20SL-00009302802fuel hosenegotiationemail us
22SL-11251226600collar screw
negotiationemail us
23SL-11237917310stihl plugnegotiationemail us
24SL-11234421602contact springnegotiationemail us
25SL-11237910600handle mouldingnegotiationemail us
26SL-11237912805annular buffer
negotiationemail us
27SL-11231821505throttle rodnegotiationemail us
28SL-11231412200manifold
negotiationemail us
29SL-11231418600impulse hosenegotiationemail us
30SL-11231415600baffle platenegotiation
email us
31SL-11231414001stihl slidenegotiationemail us
32SL-11237917500stihl covernegotiationemail us
33SL-11231820903switch shaftnegotiation
email us
34SL-90754783015pan head self-tapping screw IS-D4x15negotiationemail us
35.36SL-11237911702/1handle barnegotiation
email us
37SL-90754784155
pan head self-tapping screw IS-D5x24negotiationemail us
38SL-11233537000stihl covernegotiationemail us
40SL-00009302802stihl hosenegotiationemail us
41SL-00009302803stihl hose 3.1x5.7mmx1m, R3negotiationemail us
